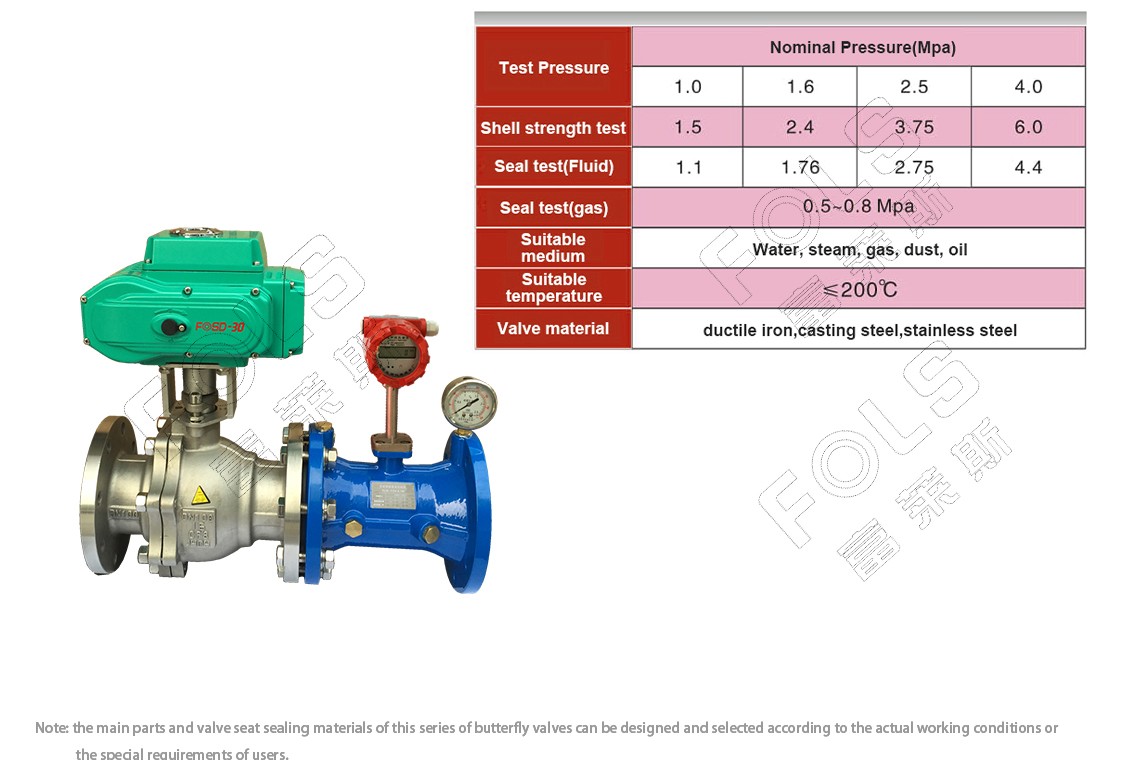

Nominal pressure (MPa)

Test pressure 1.0 1.6 2.5 4.0

Shell strength test 1.5 2.4 3.75 6.0

Sealing test (liquid) 1.1 1.76 2.75 4.4

Sealing test (gas) 0.5~0.8 MPa

Applicable medium water, steam, gas, dust, oil, etc.

Applicable temperature ≤200℃

Valve Material Ductile Iron Cast Steel, Stainless Steel

FLS-LLKZ/04 series intelligent flow control valve is suitable for occasions where flow is required and controlled in industrial and technological processes.

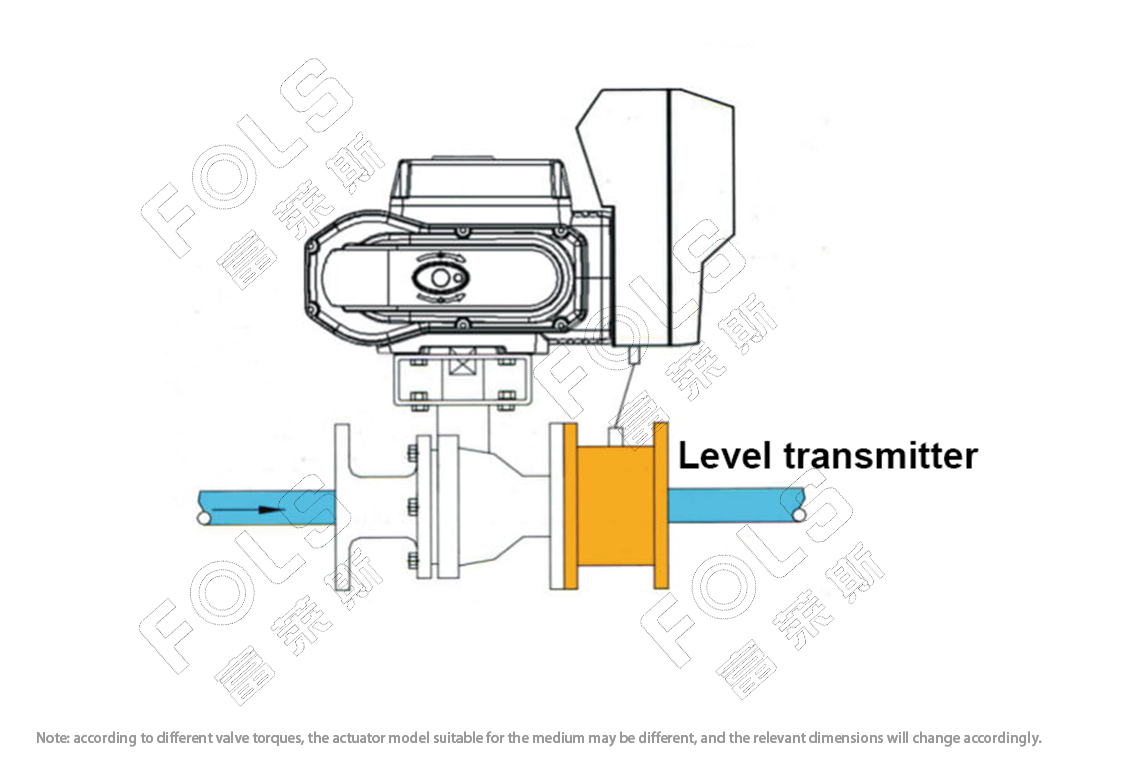

The intelligent flow control valve consists of a flowmeter, an intelligent actuator and a high-precision regulating ball valve. The flowmeter can be used in various forms according to different working conditions. Such as electromagnetic flowmeter, worm gear, vortex flowmeter, etc. Control and PID control functions. The PID function is used to control the flow rate near the stable set value. The intelligent actuator can set or change the flow value on the spot, and set the corresponding PID speed tuning parameters according to the user's flow control accuracy requirements. It can display the instantaneous flow and valve Opening. Provide user-friendly operation interface and tuning menu.

The intelligent flow regulating valve can integrate sensors, valves, actuators, temperature controllers and power modules in an integrated design, simplifying the workload of user selection.
