Nominal pressure (MPa)

Test pressure 0.6 1.0 1.6

Shell strength test 0.9 1.5 2.4

Sealing test (liquid) 0.66 1.1 1.76

Sealing test (gas) 0.3~0.8Mpa

Applicable medium water, steam, gas, dust oil, nitric acid, acetic acid, alkali, etc.

Applicable temperature ≤80℃

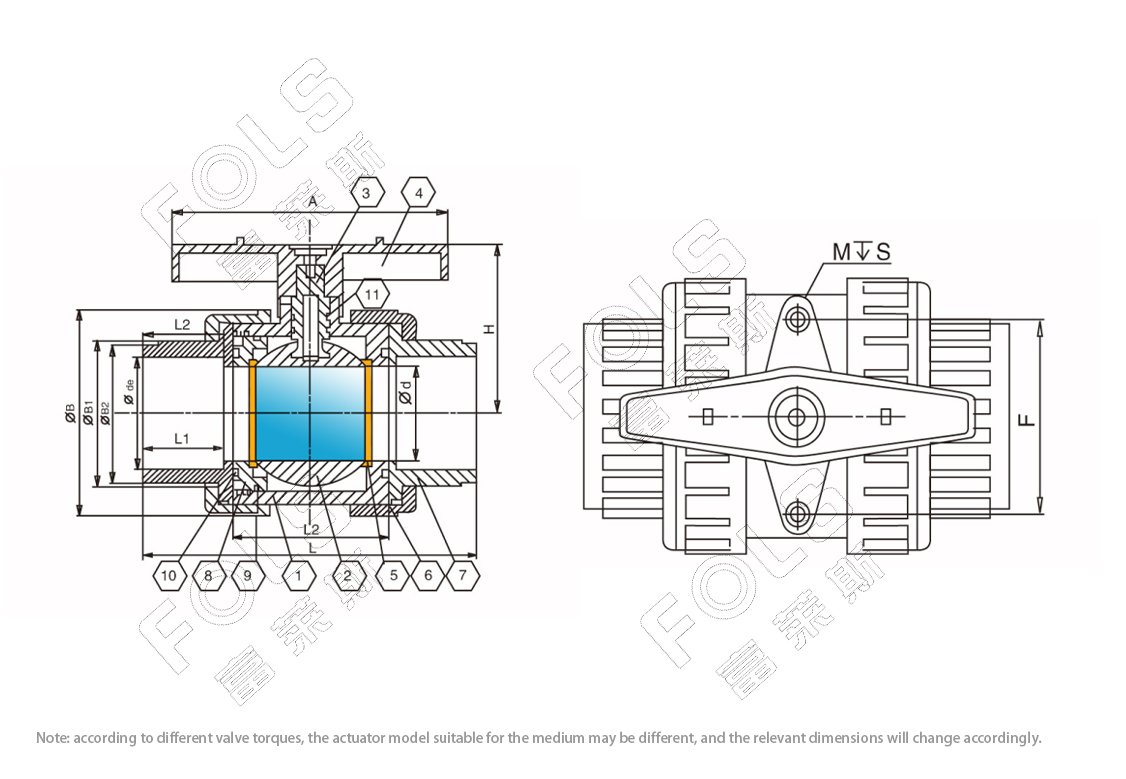

Pneumatic plastic ball valve adopts dual-position and flange connection, and can be assembled quickly without using special tools. It has the advantages of compact structure, wear resistance, easy disassembly, convenient maintenance, and simple maintenance. The valve body material is hygienic, non-toxic, Strong corrosion resistance, light weight and wide application range. For example: pure water and raw drinking water pipeline systems, drainage and sewage pipeline systems, brine and seawater pipeline systems, acid-base and chemical solution systems and many other industries.
