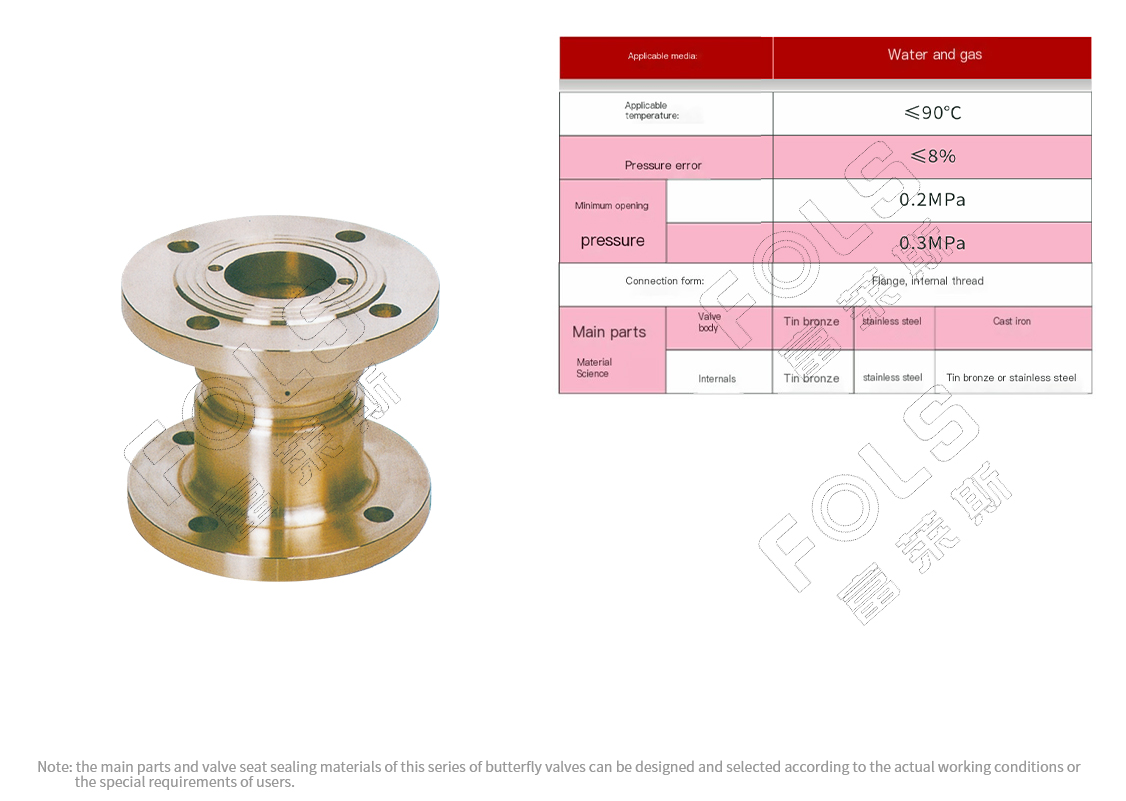

Applicable Medium: water and gas

Applicable Temperature: ≤ 90C

Pressure Error :≤ 8%

Minimum Opening: 0.2MPa

Pressure: 0.3MPa

Connection Form :flange, internal thread

Main Parts :valve body/ tin bronze/ stainless steel/ cast iron

Material Internals :tin bronze/ stainless steel /tin bronze or stainless steel

The proportional pressure reducing valve produced by our factory has beautiful appearance, reliable quality, accurate proportion and stable operation, reducing both dynamic pressure and static pressure. The valve uses the pressure difference between the two ends of the piston in the valve body with different cross-sectional areas to change the pressure behind the valve to achieve the purpose of pressure reduction.
