Model  Nominal Pressure Valve Body Test       Cabinet Seat Test  Maximum Flow Rate Decompression Range

                 PNIMPa)                pressure (MPA)         pressure (MPA) (m/s)

FL200PX  1.0       1.5        1.1         6    ≤0.7MPa

FL200PX  1.6       2.4        1.76        6    ≤0.7MPa

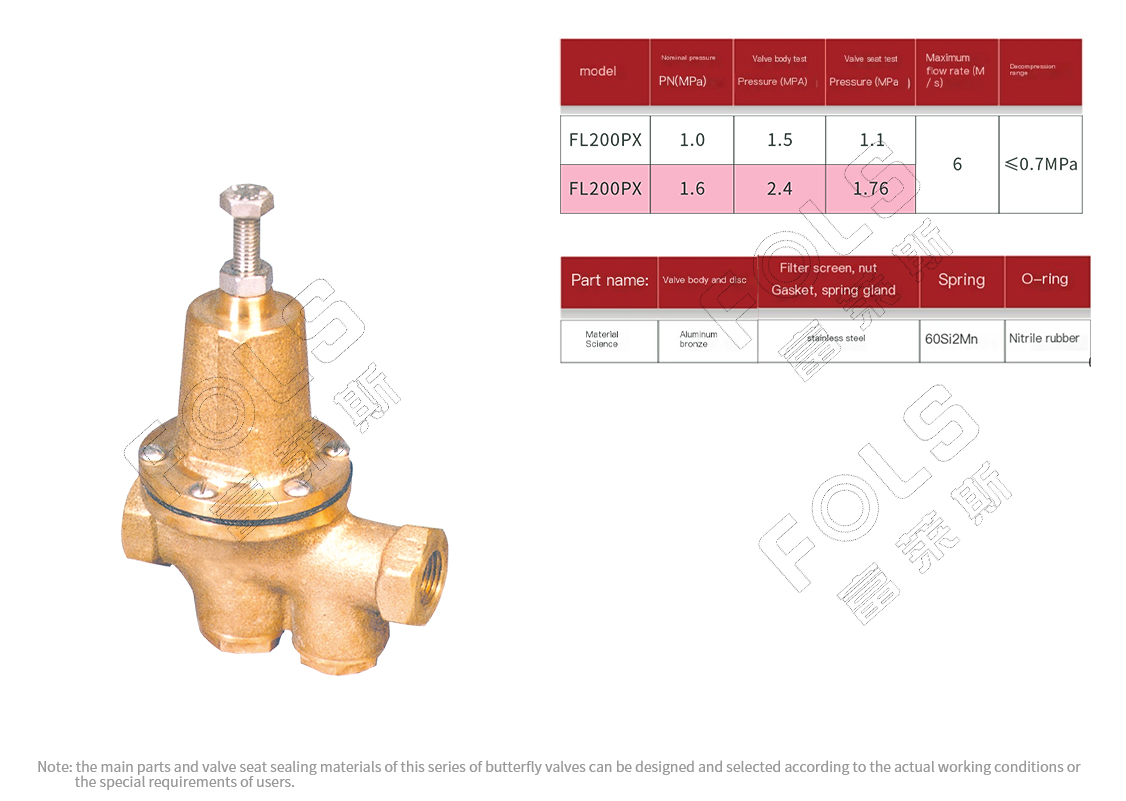

Fl200px pressure reducing valve produced by our factory is a direct acting adjustable pressure reducing valve, which adopts diaphragm hydraulic operation mode and can be installed horizontally or vertically in water supply, fire protection system or other clean water systems. The outlet pressure of the valve can be controlled to a relatively fixed value within a certain flow range.
