Nominal Pressure   1.0 MPa  1.6 MPa  2.5 MPa

Shell Test Pressure  1.5MPa   2.4MPa  3.75MPa

Sealing Test Pressure   1.1MPa   1.76MPa  2.75MPa

Applicable Temperature   0~≤80C

Minimum operating Pressure   P1≥0.07MPa

Applicable Medium   Water

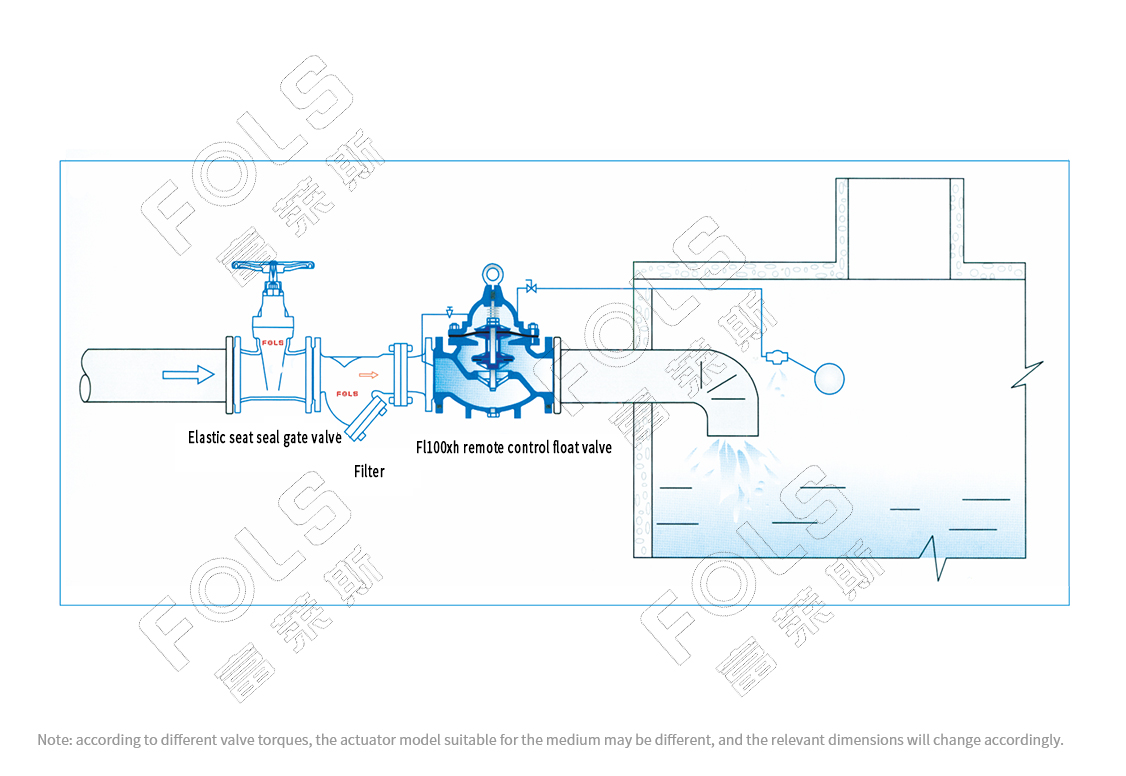

The valve is composed of main valve 2, needle valve 3, ball valve 1 and floating ball valve 4. The remote control float valve can effectively control the liquid level of the water tower or water tank, cut off or open the valve core to input the water flow or prevent the water flow from leaking. The liquid level control is accurate, the water level is not disturbed by pressure fluctuations, the opening and closing are tight without water leakage, the floating ball is flexible, and the maintenance is simple. (the control floating ball is installed separately from the main valve), which is applicable to the automatic water supply system of water tanks, pools and towers in industries, mines, enterprises and high-rise buildings.
