FLHS41X-16 Antifouling Isolating Valve
Nominal Pressure 1.0-1.6 MPa
Nominal Diameter 50-600mm
Applicable Medium water
Applicable Temperature 0-80c
Flange Standard GB/T4216- -89
The safety antifouling isolating valve is composed of a drainer between two check valves. The upper chamber of the drainer is connected with the inlet end of the primary check valve with a high-pressure hose. The first and second stage check valves are mainly composed of valve body, bonnet, disc, gasket, spring, etc. The drainer is mainly composed of valve body, valve cover, valve disc, sealing plate, valve core, valve seat, spring, etc. The common antifouling isolating valve is composed of two check valves in series.
Technical parameter

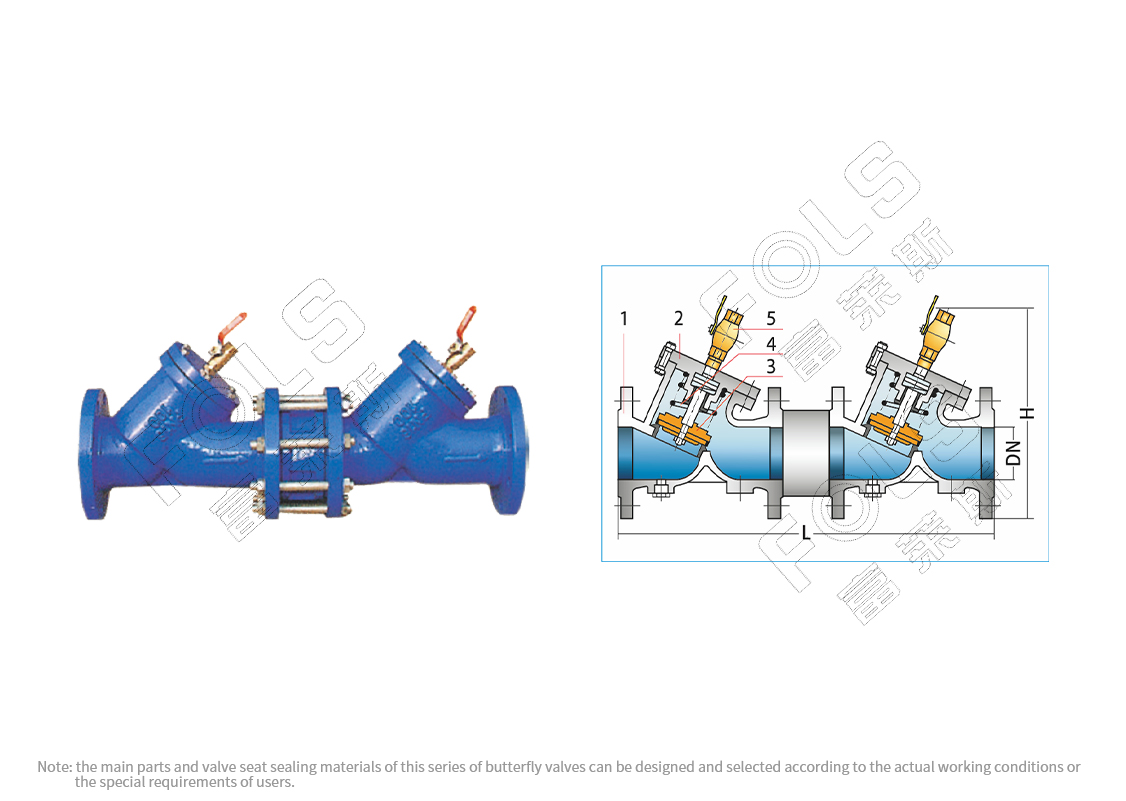

Main shape

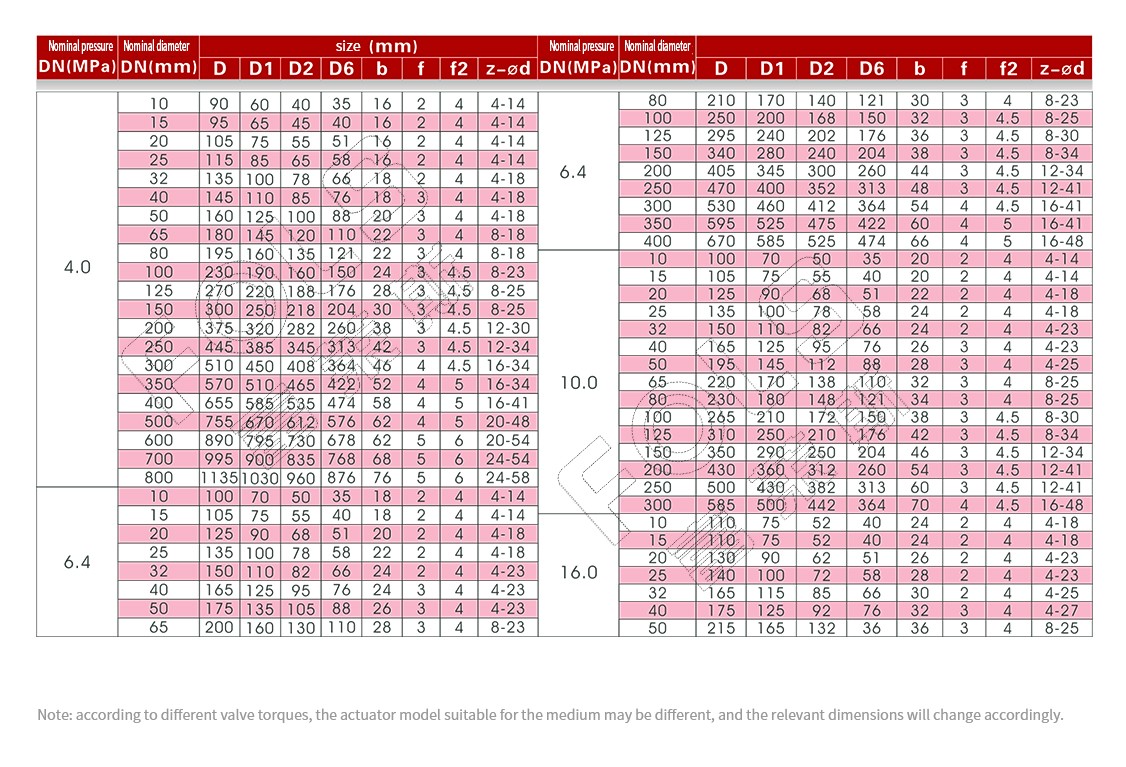

Connection size
Accessories

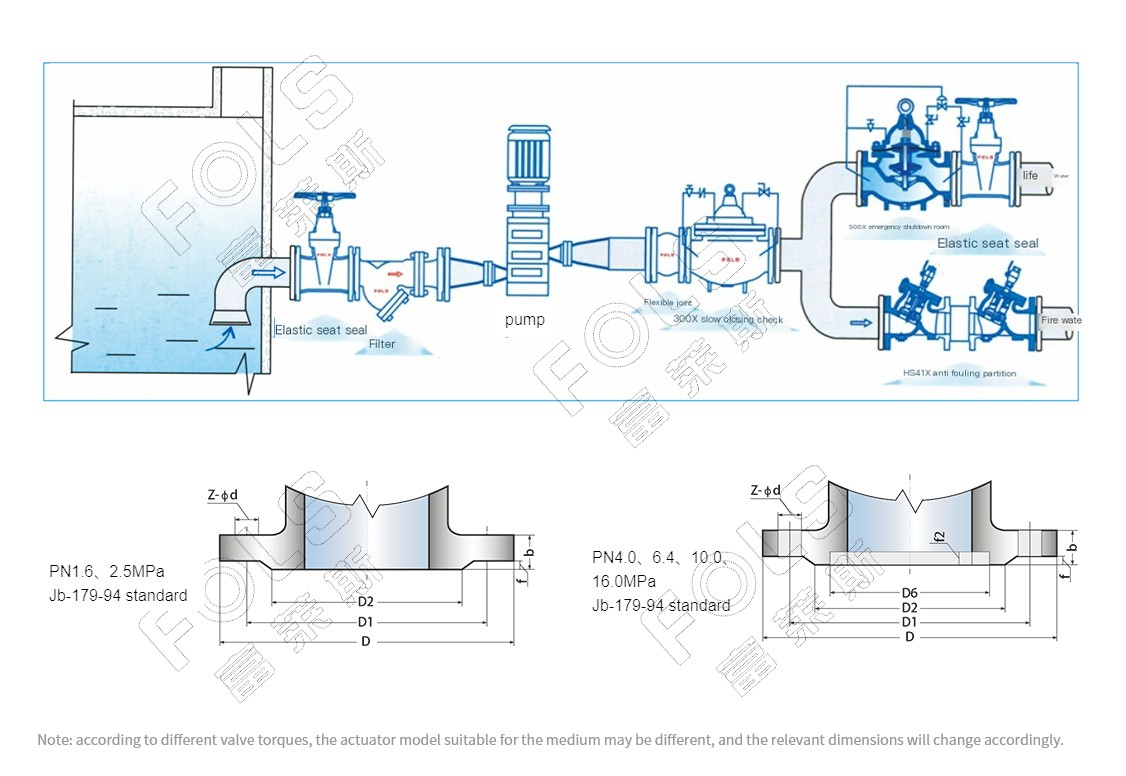

EXTENSIVE USE
