CLASSIFICATION

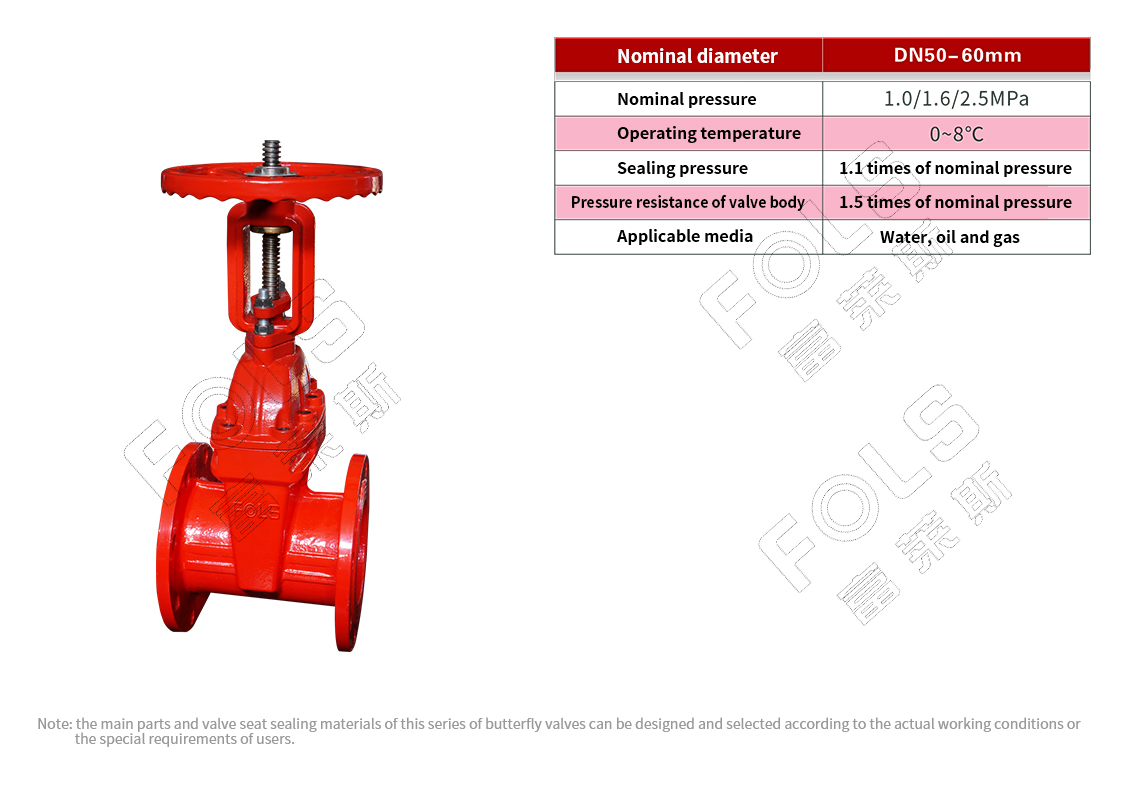

Rising stem elastic seat gate valve
Nominal Diameter:DN50- 60mm
Nominal Pressure: 1.0/1.6/2.5MPa
Operating Temperature: 0~8℃
Sealing Pressure:1.1 times the nominal pressure
Pressure Resistance of Valve Body:1.5 times the nominal pressure
Applicable Medium: water, gas, air, etc.
In addition to the advantages of elastic seated gate valve, the rising stem elastic seated gate valve,Because it can directly indicate the valve opening, it is often used in fire protection and industrial departments system. It is generally installed at a higher position from the ground.
Technical parameter

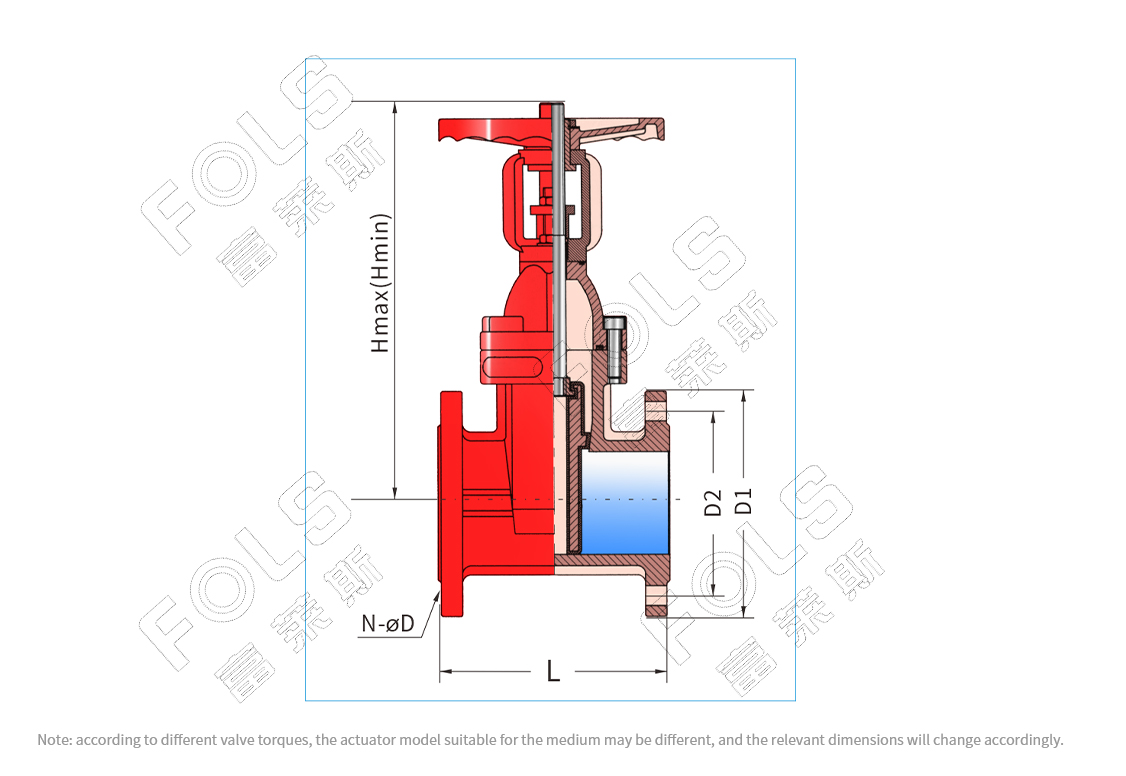

Main shape

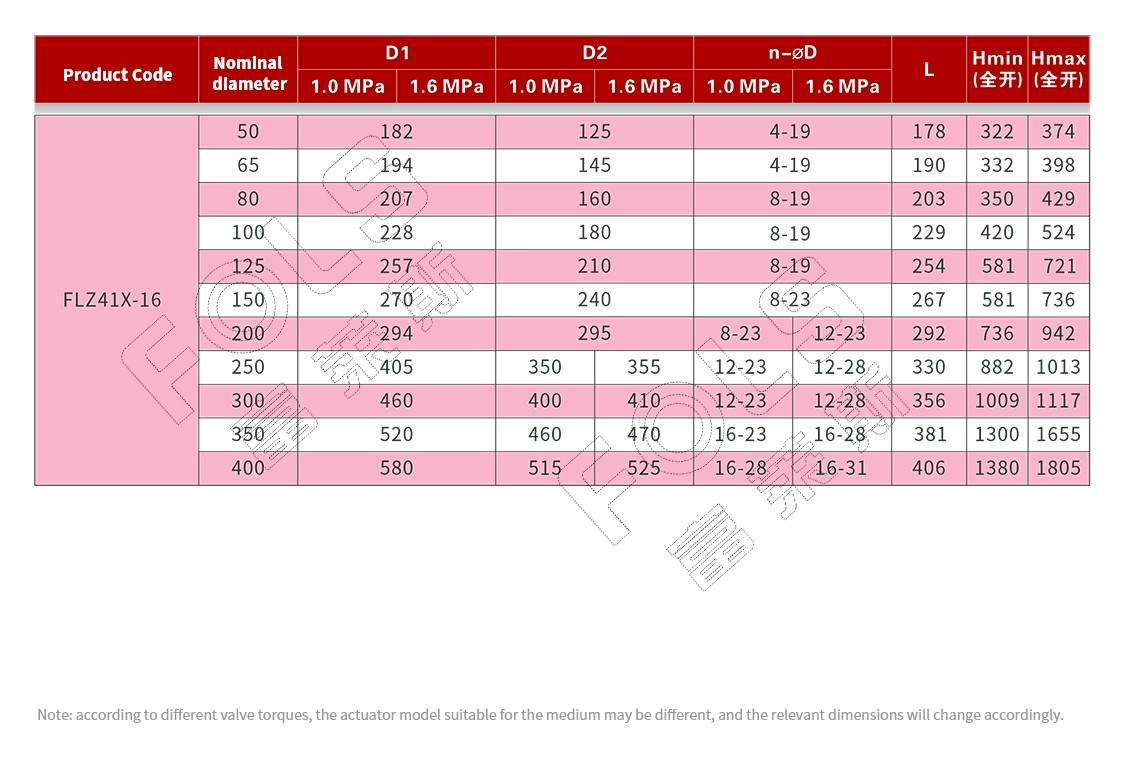

Connection size
Accessories
EXTENSIVE USE
