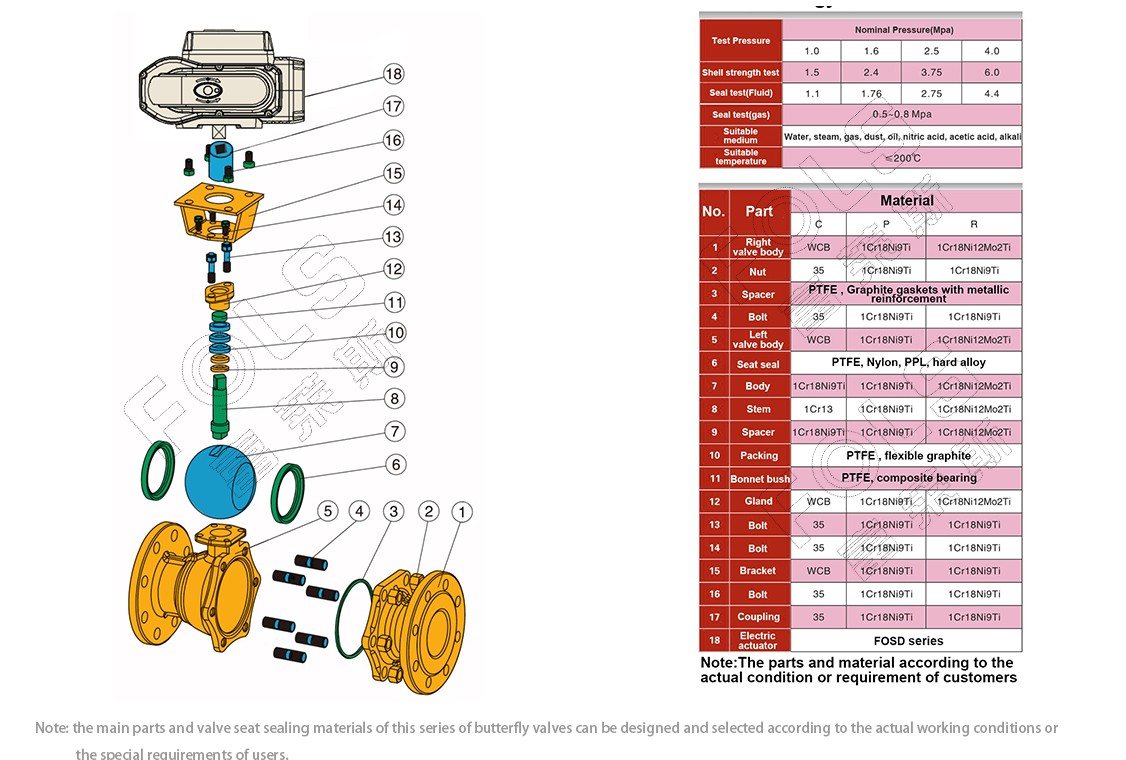

Nominal pressure (MPa)

Test pressure 1.0 1.6 2.5 4.0

Shell strength test 1.5 2.4 3.75 6.0

Sealing test (liquid) 1.1 1.76 2.75 4.4

Sealing test (gas) 0.5~0.8 MPa

Applicable medium Water, steam, gas, dust, oil, nitric acid, acetic acid, alkali, etc.

Applicable temperature ≤200℃

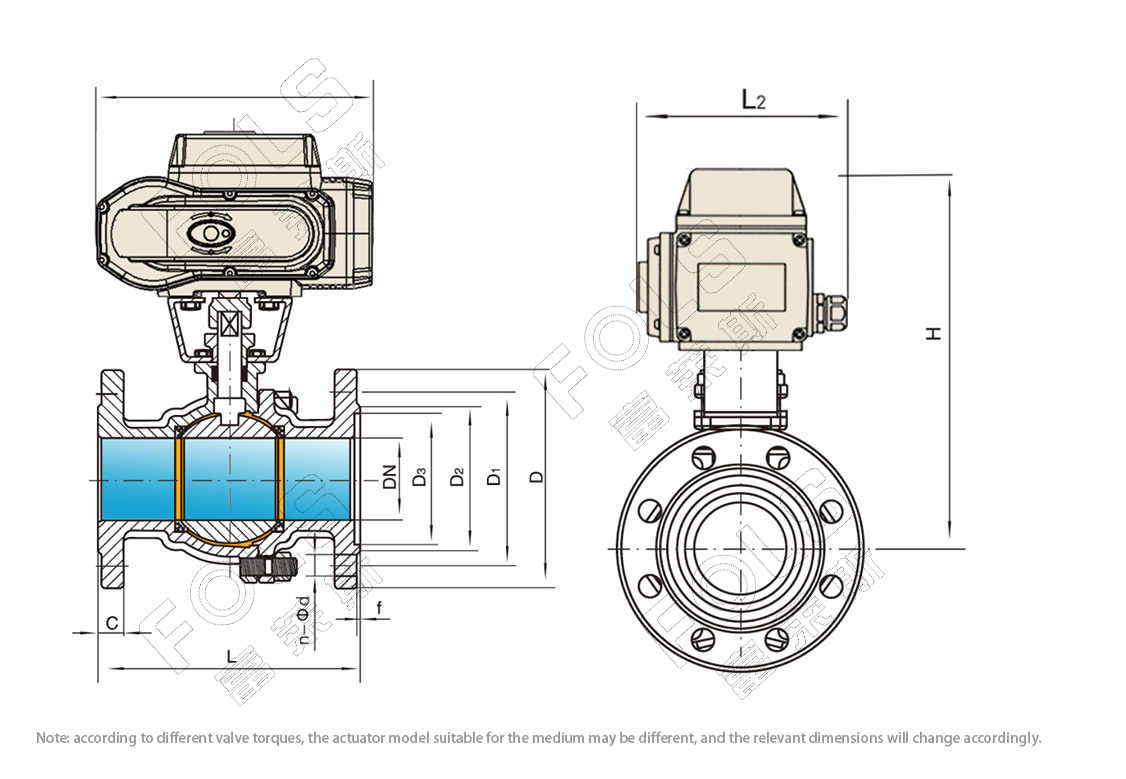

The electric ball valve is a kind of rotary ball valve with a rotation angle of 90°. It has excellent sealing performance, large flow capacity, small flow resistance coefficient, simple structure, convenient maintenance and long service life. It can flow through almost without loss. Equipped with high-performance electric actuators such as FOLS, the products are usually used in occasions with strict sealing requirements. In addition to controlling gas, liquid, tap water, and steam media, they are also suitable for controlling sewage and media containing fibrous impurities. They are widely used in petroleum and chemical industries. , metallurgy, light industry, papermaking, power station, fire protection, water supply and drainage, refrigeration and other fields of work.
