Pneumatic thin ball valve
Nominal pressure (MPa)
Test pressure 1.0 1.6 2.5
Shell strength test 1.5 2.4 3.75
Sealing test (liquid) 1.1 1.76 2.75
Sealing test ((gas) 0.5~0.8 MPa
Applicable medium Water, steam, gas, dust oil, nitric acid, acetic acid, alkali, etc.
Applicable temperature ≤200℃
FOSQ pneumatic thin ball valve has obvious advantages such as short structure length, light weight and convenient installation. Oxidizing media, urea and other media. Widely used in automatic control systems such as papermaking, petroleum, chemical industry, metallurgy, air conditioning, fire protection, water supply and drainage.

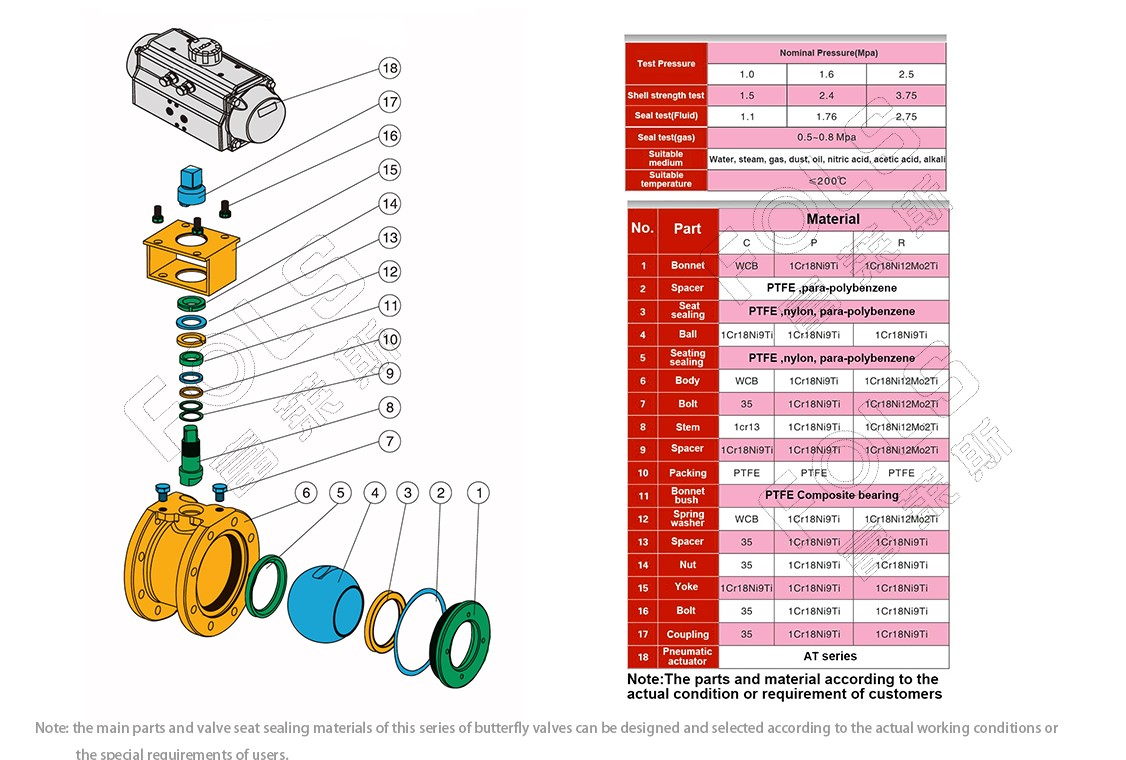

Technical parameter

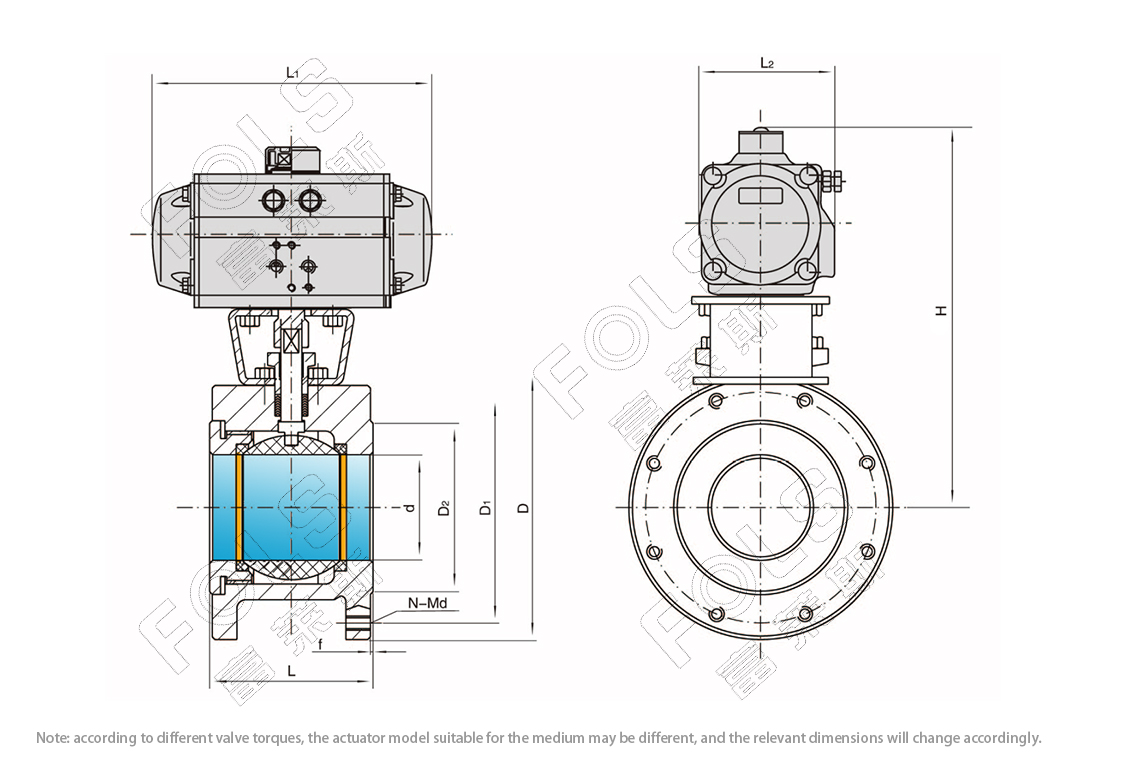

Main shape

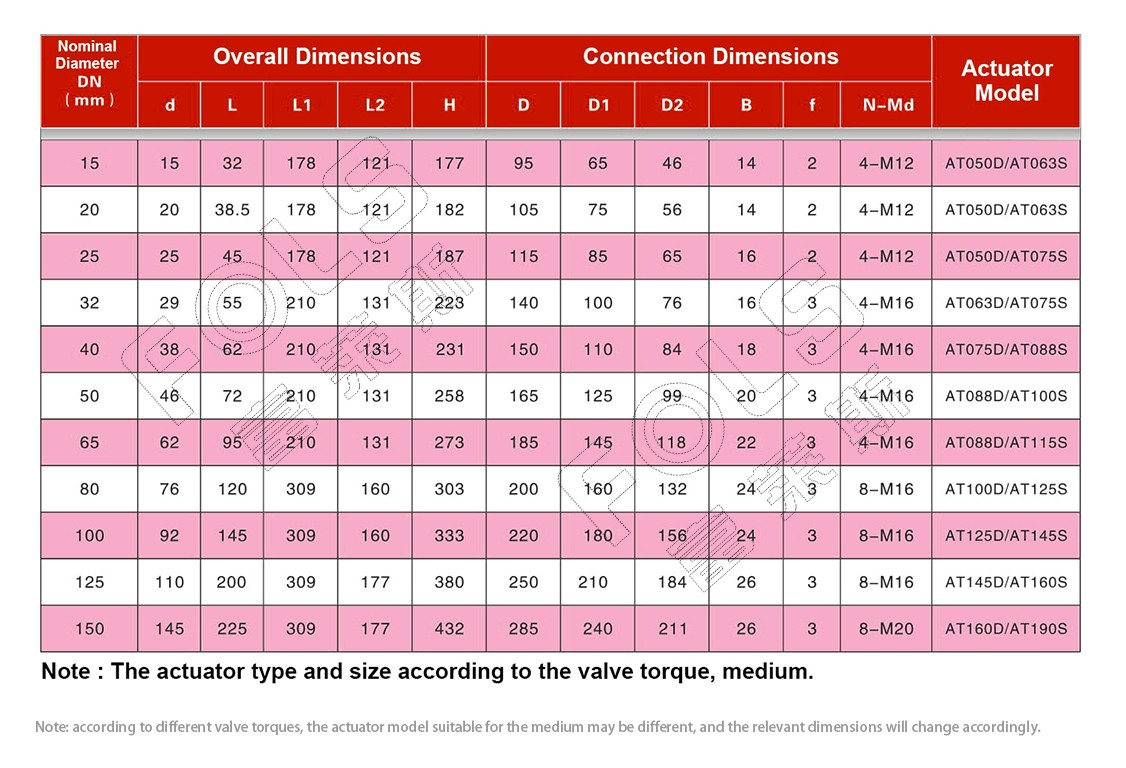

Connection size
Accessories
