Nominal Pressure   1.0 MPa  1.6 MPa  2.5 MPa

Shell Test Pressure  1.5MPa   2.4MPa  3.75MPa

Sealing Test Pressure   1.1MPa   1.76MPa  2.75MPa

Applicable Temperature   0~≤80C

Minimum Operating Pressure P1 ≥ 0.07MPa

Solenoid valve voltage AC 220V

Solenoid valve voltage DC 24V

Applicable Medium   water

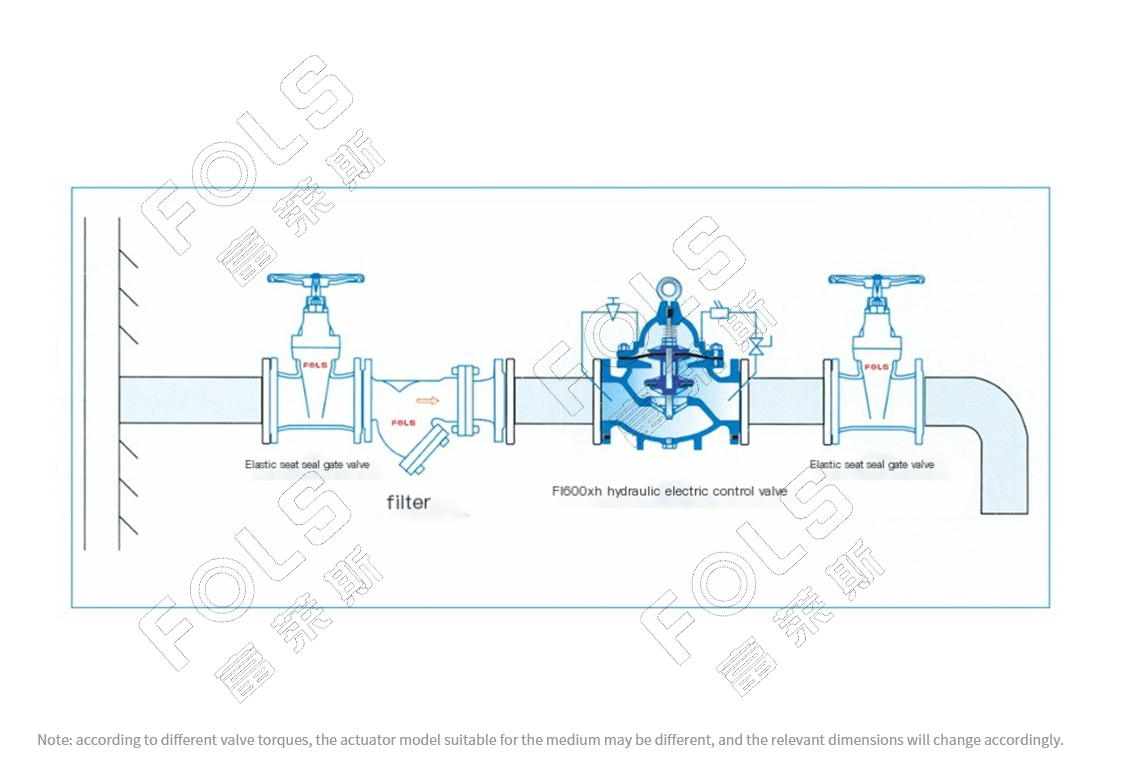

The valve is mainly composed of main valve 4, needle valve 2, solenoid pilot valve 1 and ball valve 3. The hydraulic electric control valve is a large electric device installed in the pipeline as the function of electric remote control opening and closing. At the same time, it can be equipped with a speed control device, which can replace the opening and closing gate valve or butterfly valve. It is easy to maintain, easy to use, safe and reliable.
